Application 應用

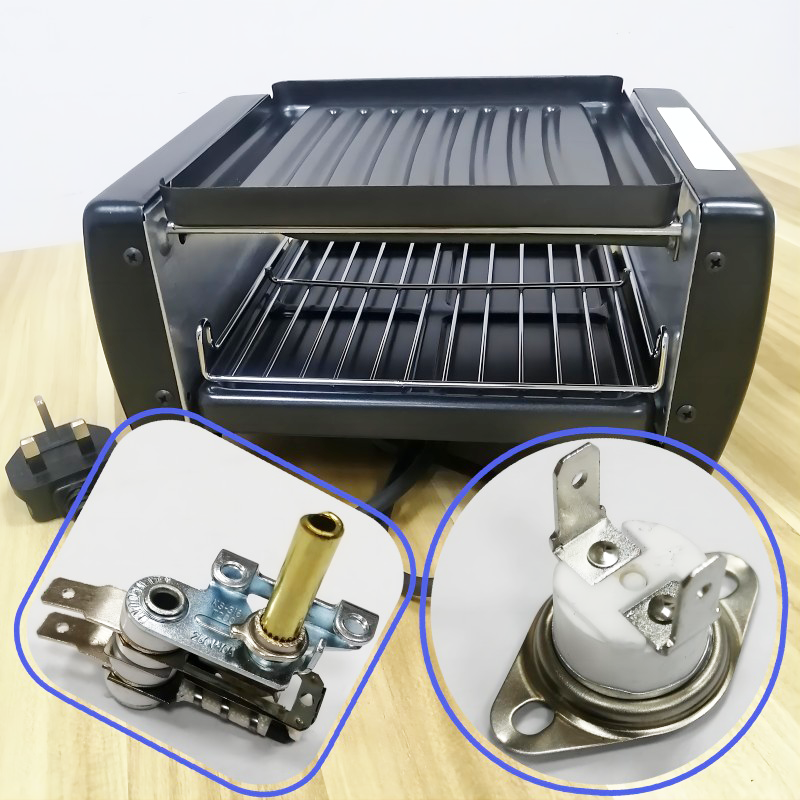

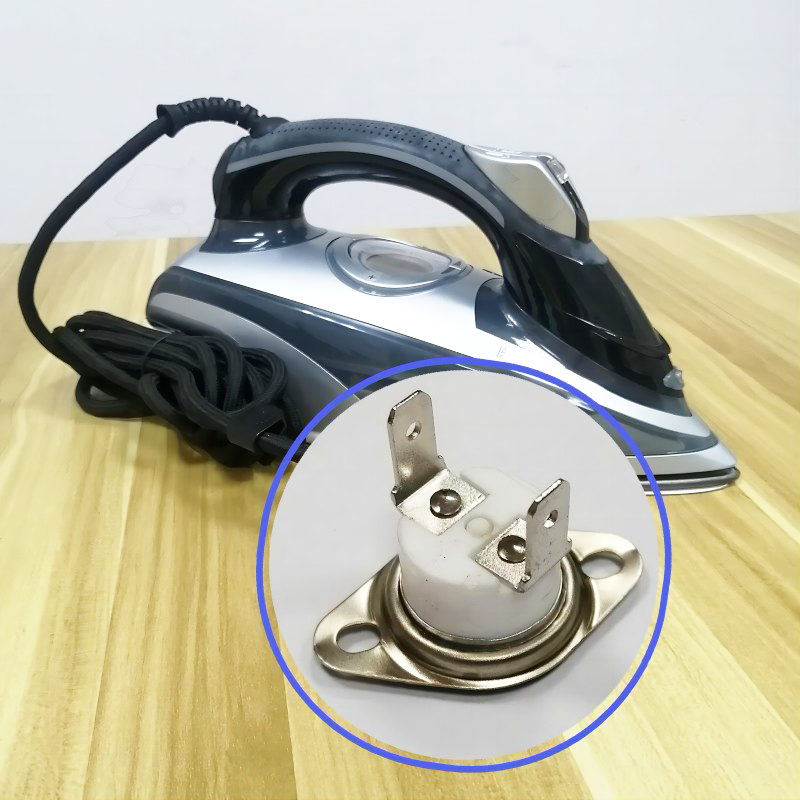

v For use in household or industrial appliances and office equipment such as: coffee maker, jug kettle, water heater, dishwasher, clothes dryer, etc.
v主要應用于家用或工業用器具上，如:咖啡壺、電熱水壺、電熱水器、洗碗機、洗衣機等
Specifications 規格
v Function v功能 | Electrical contacts open/close on temperature rise. 在溫度升高后電路會自動斷開 |
v Housing Material/ v外殼材料 | Ceramic 陶瓷 |
v Standard Rating v額定功率標準 | UL & CUL 125V AC 16A KEMA & CE 250V AC 16A |
v Number of Automatic Cycles for each Automatic Action v自動循環動作壽命 | UL & CUL S.O.D. KEMA & CE S.O.D. |
v Maximum Temperature v最高工作溫度 | UL & CUL 250°C KEMA & CE 300°C |
v Temperature Setting Range v 溫度控制設定范圍 | UL & CUL 0°C - 250°C KEMA & CE 0°C - 300°C |
v Tolerance of Operation Range/操作溫度公差范圍 | ± 10℃ % |
v Switching Differential v溫差 | 10 – 50K depending on mounting and design 依據安裝及設計定為10 – 50K不等 |
Connections 連接方式

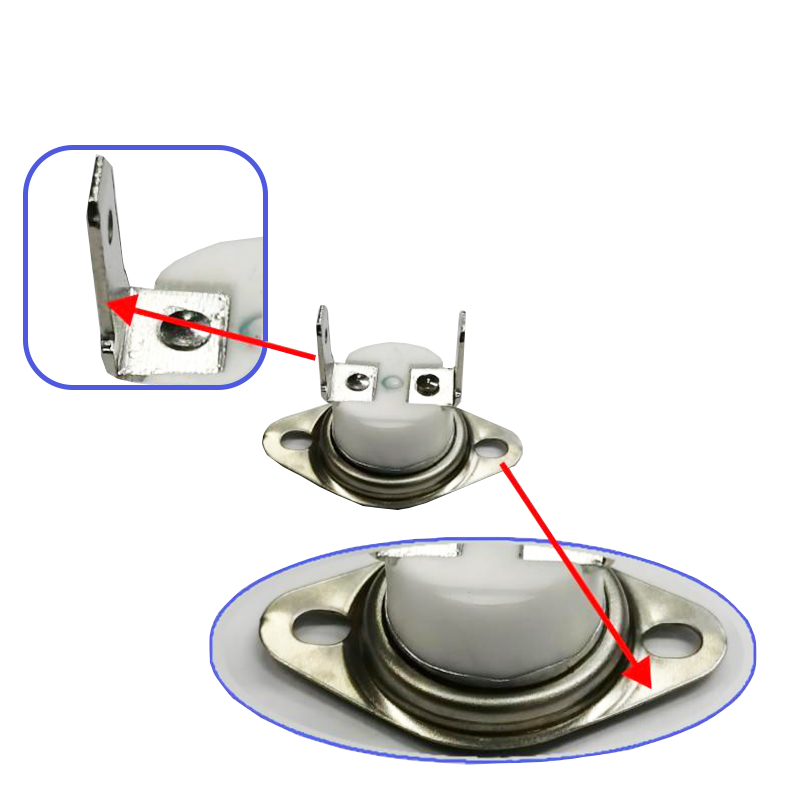

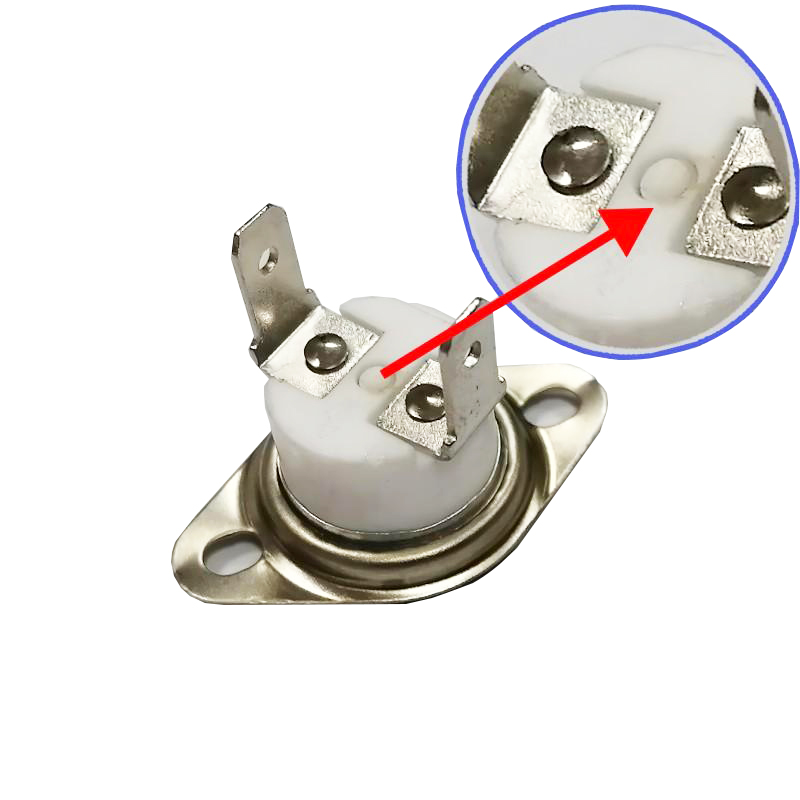

Push-on terminal( For receptacle 4.8 mm or 6.3 mm ) and M3.5 screw terminal is alternative.
接線片有插線（配4.8或6.3規格線插）端子及鎖M3.5螺紋端子規格供選擇
Categorized numbering Index 分類編號指引
KS-183-1-2-3-4-5-6
1 e W – Without mounting bracket (無安裝支架) e M – Moveable level mounting bracket(可活動的安裝支架)
e F – Fix step mounting bracket (固定的安裝支架) e S – Screw type mounting bracket(螺絲型安裝支架)
2 e S – 4.8mm terminal (4.8規格接線端子) e B – 6.3mm terminal(6.3規格接線端子)
3 e F – Flat terminal(平直型接線端子) e E – Elbow (90o) terminal (90o折彎型接線端子)
e A – Elbow (other angle) terminal(其它角度折彎型接線端子)
4e Operation Temperature(操作溫度)
5e NC – Normal Close (常態閉合) e NO – Normal Open(常態斷開)
Approval 認證
UL：E119937
KEMA（DEKRA）:2178921.01
